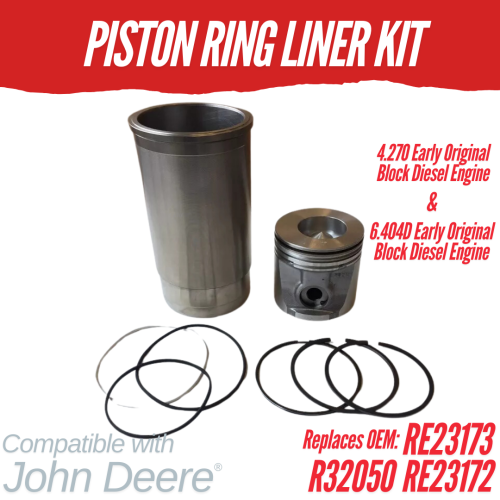

PISTON RING LINER KIT FOR JOHN DEERE 4.270 6.404D EARLY 3020 4020 JD500A JD600 REPLC: RE23173 RE23172
This is a Brand New Premium Quality Piston/Ring/Liner Kit. It comes with a Full Manufacturers Warranty. It is for the 4.270 and 6.404D (EARLY - ORIGINAL BLOCK) John Deere Diesel Engine's. Please check Block Castings Numbers Below. It will replace the original John Deere Piston/Ring/Liner Kit in the following Applications :
Fits Engine Models :
JOHN DEERE 4.270 - EARLY ORIGINAL BLOCK DIESEL ENGINE
JOHN DEERE 6.404D - EARLY ORIGINAL BLOCK DIESEL ENGINE
Fits Equipment Models :
John Deere COMBINE : 105 (w/ 6.404D - S/N : 3001 to 19000 - Block # R26070, R33180, R34340, R40890 or R40900)
John Deere BACKHOE : JD500A (w/ 4.270 - Up to ESN # 123113 - Block # R26160 or R32020 or R40850)
John Deere TRACTOR : 3020 (w/ 4.270 - Up to ESN # 122999 - Block # R26160 or R32020 or R40850)
John Deere TRACTOR : 4020 (w/ 6.404D - Up to ESN # 20099 - Block # R26070, R33180, R34340, R40890 or R40900)
John Deere WHEEL TRACTOR : JD500 (w/ 4.270 - Block # R26160 or R32020 or R40850)
John Deere WHEEL TRACTOR : JD600 (w/ 6.404D - Up to ESN : 200999 - Block # R26070, R33180, R34340, R40890 or R40900)
Replaces OEM Part Number : RE23173, RE23172, R32050, 31-311
Specifications :
* Diesel - Natural Aspiration
* Bore : 4.25" (108mm)
* Wrist Pin Diameter : 1.50" (38mm)
* 4.270 - Block Casting # R26160 or R32020 or R40850
* 6.404D - Block Casting # R26070, or R33180 or R34340 or R40890 or R40900
| Applications | |
| Agricultural Tractor Models | 105, 3020, 4020 |
| Engine Models | 4.270, 6.404D |
| Industrial Tractor Models | JD500, JD500A, JD600 |
| OEM Reference | RE23173, RE23172, R32050, 31-311 |
