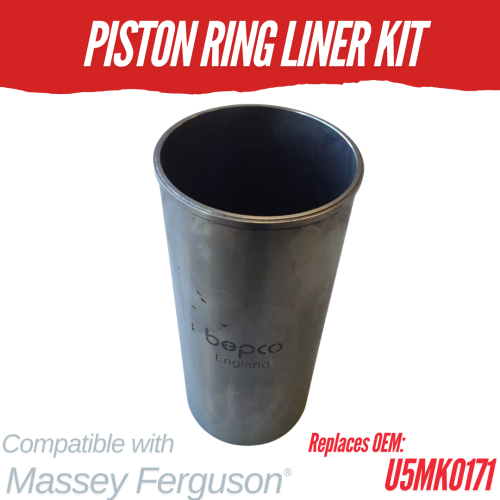

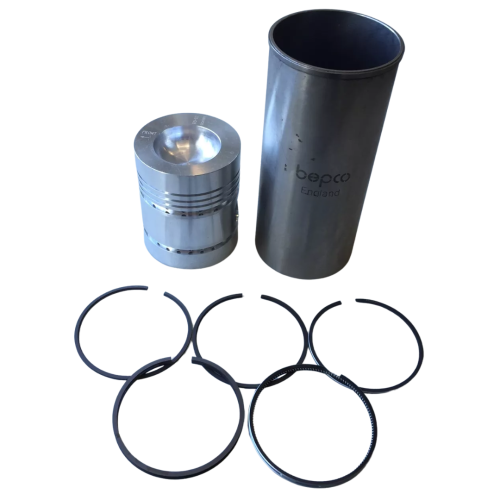

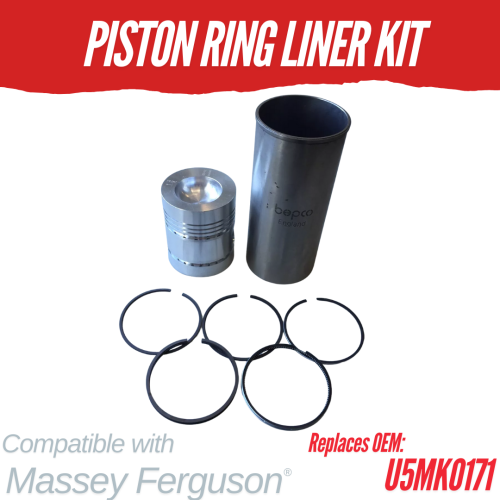

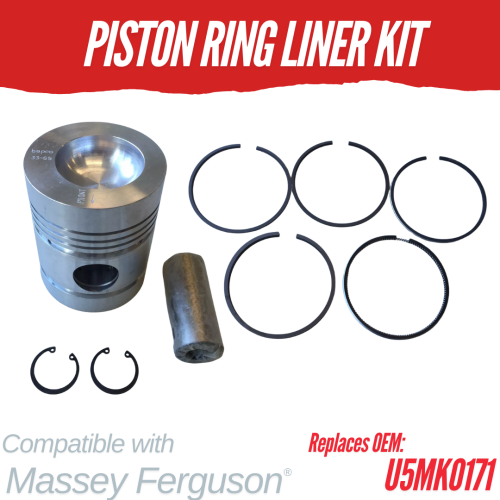

PISTON RING LINER KIT FOR MASSEY FERGUSON / PERKINS A4.236 W/ LINER OD 4.063" REPLC: U5MK0171
This is a Brand New Premium Quality Piston/Ring/Liner Kit. It comes with a Full Manufacturers Warranty. It is for the A4.236 PERKINS Direct Injection (DISHED TOP PISTON) Engines w/ LINER OD of 4.063" (103.19mm). It will replace the original Perkins / Massey Ferguson Piston/Ring/Liner Kit in the following Applications :
Fits Engine Models :
PERKINS A4.236 ENGINE (w/ Liner OD 4.063" or 103.19mm)
Fits Equipment Models :
Massey Ferguson INDUSTRIAL TRACTOR : 50C (w/ A4.236 - ESN Before UA1030631)
Massey Ferguson INDUSTRIAL TRACTOR : 50C (w/ A4.236 - ESN UA103064 - U106654N)
Massey Ferguson INDUSTRIAL TRACTOR : 50C (w/ A4.236 - ESN UA103064L - U106654N)
Massey Ferguson TRACTOR : 165 (w/ A4.236 - ESN Before UA103063L)
Massey Ferguson TRACTOR : 175 (w/ A4.236 - ESN UA103064L - U106654N)
Massey Ferguson TRACTOR : 180 (w/ A4.236)
Massey Ferguson TRACTOR : 255 (w/ A4.236 - ESN Before UA103063L)
Massey Ferguson TRACTOR : 255 (w/ A4.236 - ESN UA103064L - U106654N)
Massey Ferguson TRACTOR : 261 (w/ A4.236)
Massey Ferguson TRACTOR : 265 (w/ A4.236 - ESN Before UA103063L)
Massey Ferguson TRACTOR : 265 (w/ A4.236 - ESN UA103064L - U106654N)
Massey Ferguson TRACTOR : 270 (w/ A4.236)
Massey Ferguson TRACTOR : 275 (w/ A4.236 - ESN Before UA103063L)
Massey Ferguson TRACTOR : 275 (w/ A4.236 - ESN UA103064L - U106654N)
Massey Ferguson TRACTOR : 6000 (w/ A4.236 - ESN Before UA1030631)
Replaces OEM Part Number : 3638888M91, B1105, U5MK0171, 31-14
Specifications :
* BORE : 3.8770" (98.476mm)
* LINER OD : 4.063" (103.19mm)
* DIRECT INJECTION (DISHED TOP PISTON)
* 5 Ring Piston
| Applications | |
| Agricultural Tractor Models | 165, 175, 180, 255, 261, 265, 270, 275, 6000, 187 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 206 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 240 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 307 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 330 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 8 Plot (Early blocks 103.19mm bore Ï , Liner with flame ring) , 10 Plot (Early blocks 103.19mm bore Ï , Liner with flame ring) , 16 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 16 Plot (Early blocks 103.19mm bore Ï , Liner with flame ring) , 24 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 99 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 168 (Lip seal) , 168F (Lip seal) , 168S (Lip seal) , 174 (Early blocks 103.19mm bore Ï) , 174C (Early blocks 103.19mm bore Ï) , 174F (Early blocks 103.19mm bore Ï) , 174S (Early blocks 103.19mm bore Ï) , 174V (Early blocks 103.19mm bore Ï) , 175 (Lip seal) , 175S (Lip seal) , 184 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 184F (Lip seal) , 184S (Lip seal) , 255 (USA) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 265 (Early blocks 103.19mm bore Ï) , 273 (Early blocks 103.19mm bore Ï) , 274 (Early blocks 103.19mm bore Ï) , 274C (Early blocks 103.19mm bore Ï) , 274CF (Early blocks 103.19mm bore Ï) , 274S (Early blocks 103.19mm bore Ï) , 274SK (Early blocks 103.19mm bore Ï) , 275 (Early blocks 103.19mm bore Ï) , 275E (Early blocks 103.19mm bore Ï , Liner with flame ring) , 283 (Early blocks 103.19mm bore Ï) , 284 (Early blocks 103.19mm bore Ï) , 284S (Early blocks 103.19mm bore Ï , Liner with flame ring) , 265 (Early blocks 103.19mm bore Ï) , 362 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 362N (Early blocks 103.19mm bore Ï , Liner with flame ring) , 365 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 367CF (Early blocks 103.19mm bore Ï , Liner with flame ring) , 372N (Early blocks 103.19mm bore Ï , Liner with flame ring) , 373 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 373LX (Early blocks 103.19mm bore Ï , Liner with flame ring) , 373S (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374AP (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374AP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374AQ (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374F (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374FP (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374FP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374FQ (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374GE (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374GE(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374H (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374S (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374SP (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374SP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374SQ (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374V (Early blocks 103.19mm bore Ï , Liner with flame ring) , 374VQ (Early blocks 103.19mm bore Ï , Liner with flame ring) , 375 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 375E (Early blocks 103.19mm bore Ï , Liner with flame ring) , 376C (Early blocks 103.19mm bore Ï , Liner with flame ring) , 376CF (Early blocks 103.19mm bore Ï , Liner with flame ring) , 376XCF (Early blocks 103.19mm bore Ï , Liner with flame ring) , 377 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 383 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 383LX (Early blocks 103.19mm bore Ï , Liner with flame ring) , 383S (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384AP (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384AP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384AQ (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384F (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384FP (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384FP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384FQ (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384GE (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384GE(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384S (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384SP (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384SP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384SQ (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384V (Early blocks 103.19mm bore Ï , Liner with flame ring) , 384VQ (Early blocks 103.19mm bore Ï , Liner with flame ring) , 387 (Early blocks 103.19mm bore Ï , Liner with flame ring) , 3050 (Early blocks 103.19mm bore Ï) , 3220AP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 3220FP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 3220GE(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 3220SP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 3225AP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 3225FP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 3225GE(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 3225SP(X) (Early blocks 103.19mm bore Ï , Liner with flame ring) , 565 (Early blocks 103.19mm bore Ï) , 575 (Early blocks 103.19mm bore Ï) , 675 (Early blocks 103.19mm bore Ï) |
| Engine Models | A4.236 |
| Industrial Tractor Models | 50C, 30D (Early blocks 103.19mm bore Ï) , 50 (Early blocks 103.19mm bore Ï) , 50B (Early blocks 103.19mm bore Ï , Liner with flame ring) , 50B MKII (Early blocks 103.19mm bore Ï) , 50C (Early blocks 103.19mm bore Ï) , 50D (Early blocks 103.19mm bore Ï) , 50E (Early blocks 103.19mm bore Ï) , 50H (Early blocks 103.19mm bore Ï) , 50H-S (Early blocks 103.19mm bore Ï , Liner with flame ring) , 50H-T (Early blocks 103.19mm bore Ï , Liner with flame ring) , 60 (Early blocks 103.19mm bore Ï) |
| OEM Reference | 3638888M91, B1105, U5MK0171, S40450, 31-14 |
